Fiber Optic Patch Panels (ODF) – 19″ Rack Mount
19″ fiber optic patch panels, also known as Optical Distribution Frames (ODF), are designed for the termination, splicing, and distribution of fiber optic cables within structured cabling systems. These panels provide a reliable and organized solution for managing fiber connections in data centers, telecommunication rooms, and enterprise networks.
This model is widely used across Europe due to its intelligent, user-oriented design, ensuring efficient installation, convenient cable management, and easy access for maintenance. The sliding drawer mechanism allows smooth operation, enabling technicians to access fiber splices without disturbing existing connections.
A key functional advantage is the rear cable entry system with integrated openings for PG glands. This design ensures secure cable fixation while allowing a controlled reserve of fiber tubes that move together with the sliding tray during operation, minimizing strain on fibers.
Specifications
- Mounting: 19″ rack mountable
- Available heights: 1U, 2U, 3U
- Material: Cold rolled steel construction
- Surface finish: Powder-coated

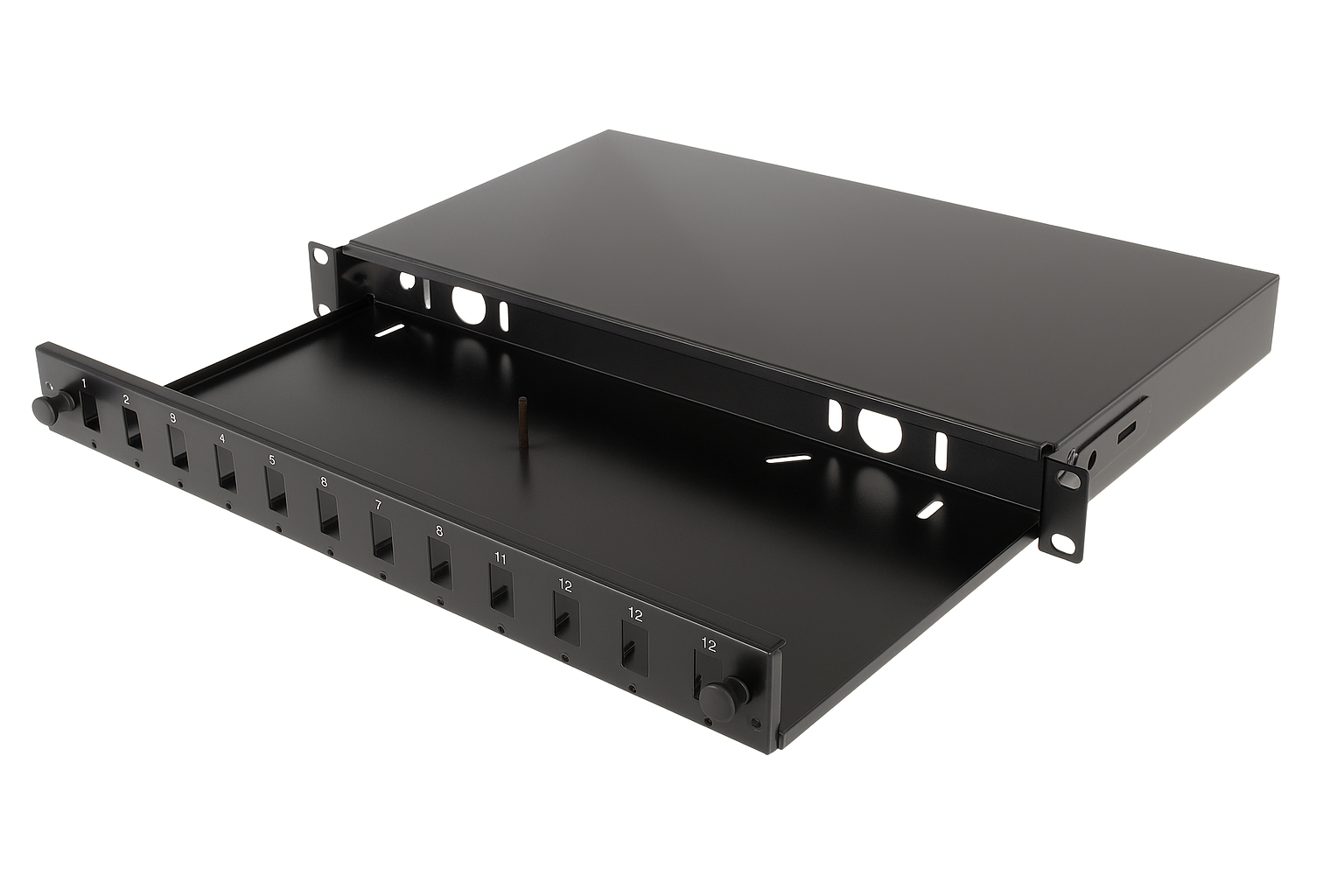

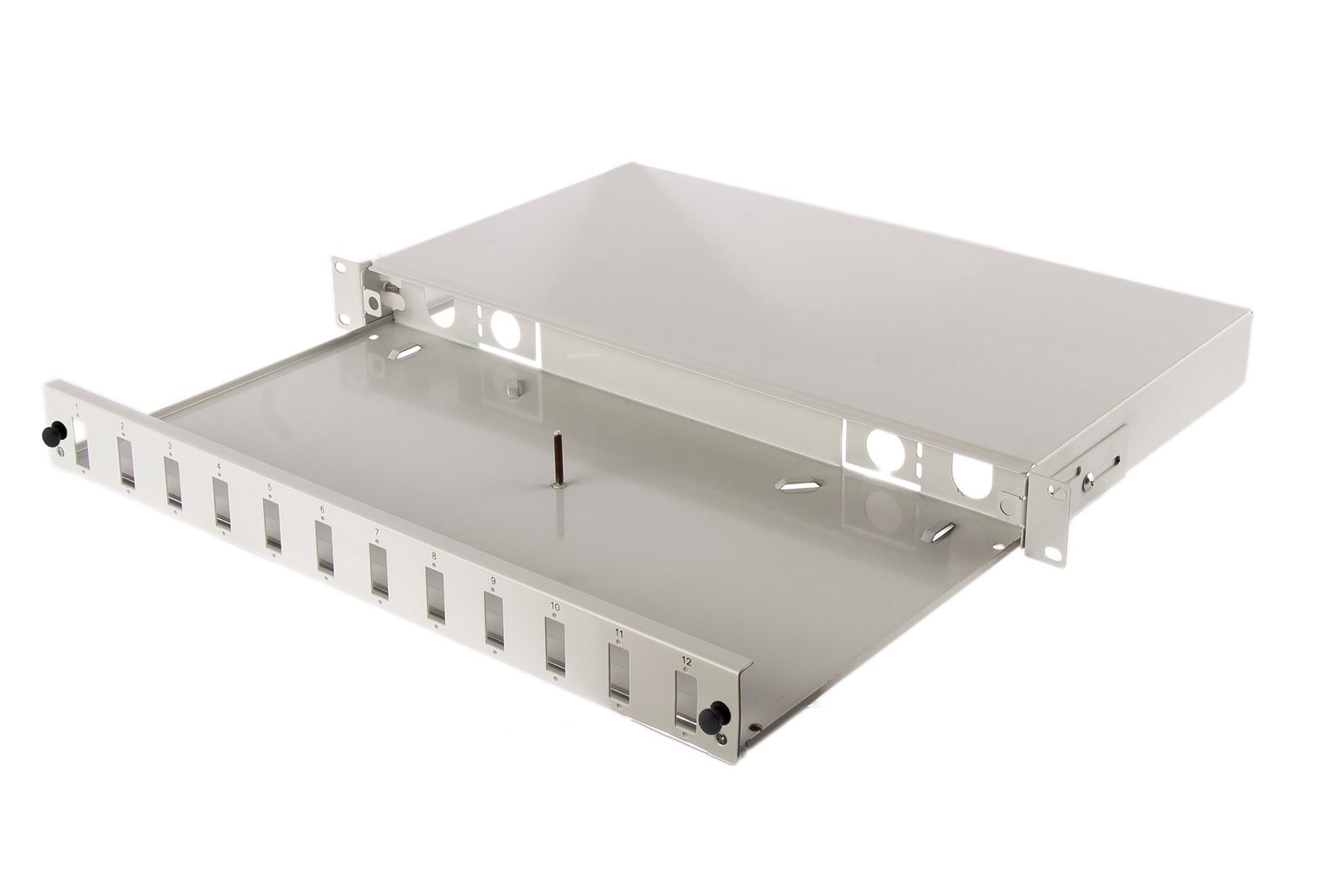

- Standard color: RAL 7035 (Light Grey) or RAL 9005
- Cable entry: Rear side with PG gland compatibility
- Type: Sliding drawer without rails
- Configuration: Supplied unloaded or pre-loaded
Adapter Compatibility
The patch panels support a wide range of interchangeable front plates, allowing flexible configuration according to project requirements.
Supported adapter types include:
- SC
- LC
- ST
- FC
- E2000
- MTRJ
Port quantity and adapter configuration can be freely selected depending on network density and application.
Applications
- Data centers
- Telecommunication networks
- Enterprise and campus networks
- LAN, MAN, WAN infrastructures
- Fiber Channel, Ethernet, ATM systems
- Indoor structured cabling installations
Features
- Compatible with standard 19″ cabinets and racks
- Modular front panels for flexible adapter configuration
- Individually labeled ports for easy identification
- Supports full range of fiber optic adapters
- Sliding tray design for convenient access and maintenance
- Secure cable management with rear PG gland entry
- Available in unloaded and pre-loaded versions
- Designed for high-density and scalable fiber networks
