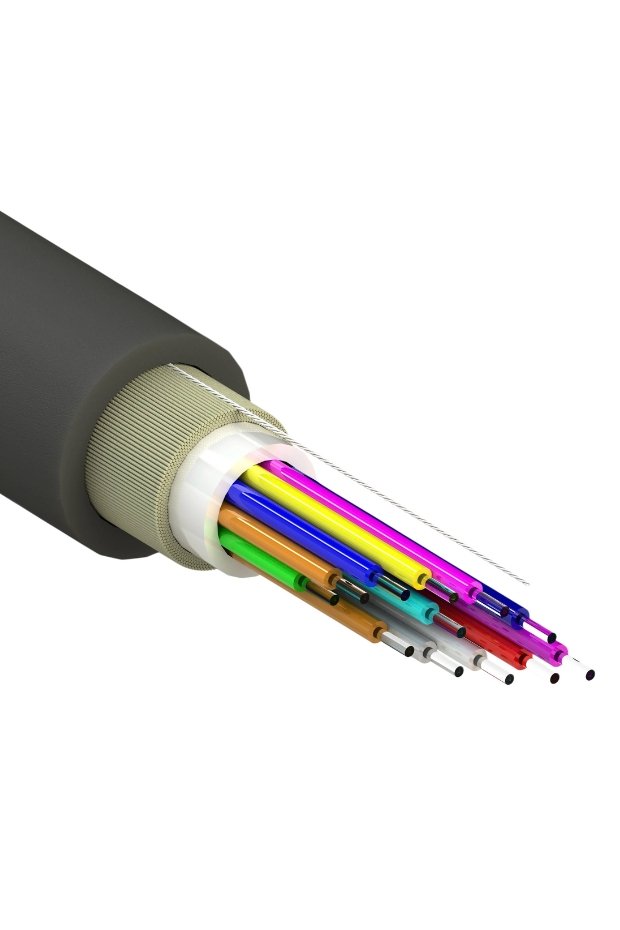

12 fiber optic cable RAXELINK SM OS2 G.657A1, DCA, 1600N
Fiber optic cable 12F SM OS2 G.657.A1 – U-DQ(BN)H DCA is a universal unitube cable designed for indoor and indoor–outdoor installations. It ensures reliable data transmission, mechanical robustness and high fire safety.
It uses SM OS2 G.657.A1 fibers providing low attenuation and high resistance to bending.
The cable features an HFFR (LSZH) outer sheath and CPR class DCA, making it suitable for installation in buildings, public facilities and infrastructure. A layer of glass yarns provides rodent protection, while the construction is suitable for both pulling and air-blown installation methods.
Features:
– Universal cable: suitable for indoor and outdoor ducts, conduits and shafts
– CPR class: DCA
– Glass yarn reinforcement for rodent resistance
– HFFR / LSZH outer sheath – low smoke, halogen-free
– Suitable for both blowing and pulling installation
– Lightweight, flexible and compact design
– SM OS2 G.657.A1 fibers – high bend resistance
Specifications:
– Fiber count: 12
– Fiber type: SM OS2 G.657.A1
– Cable design: central loose tube, thixotropic gel filled
– Nominal cable outer diameter: 6.5 mm
– Maximum installation tensile load: 2500 N
– Maximum operating tensile load: 1600 N
– Crush resistance: 1500 N / 100 mm
– Minimum bending radius: 20 × cable diameter
– Operating temperature: -40 °C … +60 °C
– Installation temperature: -20 °C … +60 °C
– Nominal weight: 64 kg/km
Standards:
– CPR: DCA
– ISO/IEC 11801, IEC 60794-1, IEC 60794-2
– EN 50399
– EN 60332-1-2, IEC 60332-3-24
– EN 61034
– EN 60754-2
– TIA/EIA 598
– Telcordia GR-409
